Brand : Contec
Model : TLC 9803
Contec 3 Channel Holter Monitor  Introduction:-
TLC9803 dynamic electrocardiograph using custom of three lead system, by the company to continuous recording ecg waveform for 24 hours, and through the PC software analysis ecg waveform.This product is suitable for all kinds of medical institutions and community health care.
Record box features:
  • To adopt advanced technology for design and development to ensure record box is stable, reliable, durable.
  • Possess strong anti-interference, shock resistance.

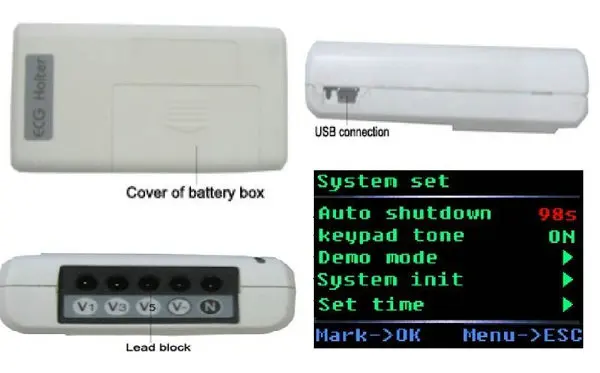

  • Record box of small volume, is equipped with OLED color screen, 260000 color 160 * 128 resolution.
  • With functions of waveform preview, record review, event flag.
  • Built-in real-time clock can accurately record the start time of data collection.
  • Using the embedded TF card to store data, to avoid repeated plug caused damage.
  • Up to 2 gb capacity, ensure that the original data storage full analysis, without compression.
  • Using high-speed USB2.0 interface, a single medical record playback time is not an average of more than 40 seconds, plug and play.
  • Record box of internal with high precision, high frequency sampling design, a complete record ecg waveform in detail.
  • Each record box are equipped with a higher sampling frequency of logging, accurately record the working state of the cardiac pacemaker.
The software features:
  • Based on superposition of guide slope (MCSSTM) and tree multi-layer classification (TMCATM) arrhythmia automatic analysis can greatly reduce the workload of doctors.
  • Adopting three synchronization analysis, make the QRS wave to find accurate and no distortion.
  • Have room, room early early, long intervals, flutter, atrial fibrillation, etc more than ten kinds of templates, and a variety of custom modules, can distinguish between almost any kind of the pathology of wave form.
  • The analysis of flexible channel selection function, can choose any channels give priority to analysis.
  • Flexible af analysis, make the doctor can use full af, segmented automatic, manual analysis, make the analysis more accurate atrial fibrillation.
  • Powerful pacemaker analysis, we can all of AAI, VVI and DDD pacemaker were analyzed.
  • "Double chamber pacemaker", "atrial pacing," and "ventricular pacing,", "ventricular false convergence", "no pacemaker" wait for a variety of pacemaker analysis module.
  • Quick retrospective analysis function, can review at any time of a single lead or lead electrocardiogram (ecg).
  • Heart rate variability analysis with short-range and long-range 5 minutes for 1 hour and 24 hours of heart rate variability analysis.
  • Convenient one-stop printing, printing report process.
  • Perfect medical record management functions.
  • Advanced analysis of ST segment, the abnormal ST can be fully and press event analysis, make the doctor can comprehensive judging myocardial ischemia.
  • Unique "sleep apnea" analysis can predict risk of sleep apnea.
  • The heart rate turbulence analysis can well predict the risk of death in patients with myocardial infarction.
  • "T wave electricity alternating" analysis is to predict malignant arrhythmia, one of the important indices for sudden cardiac death.
The main specifications:
Lead : lead 3
Sampling accuracy : 12 bit
Record time : 24 hours

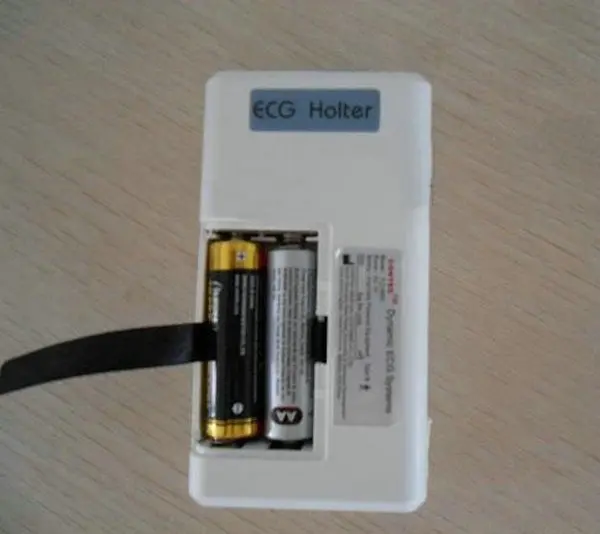

Power supply : 2 section 5 alkaline batteries
Data interface : USB2.0
Voltage scaling : 1 mv plus or minus 5%
Standard sensitivity : 10 mm/mV plus or minus 5%
Noise level : 30 mu V or less
Common mode rejection ratio : p 60 db
Low frequency characteristics : the time constant is not less than 3.2 s
Scanning speed : 25 mm/s plus or minus 5%
Polarization voltage tolerance : + 300 mv dc polarization voltage, sensitivity to change is not more than + 10%
Minimum detectable signal : 50 (including V p - p
Product safety type : internal power type B applied part

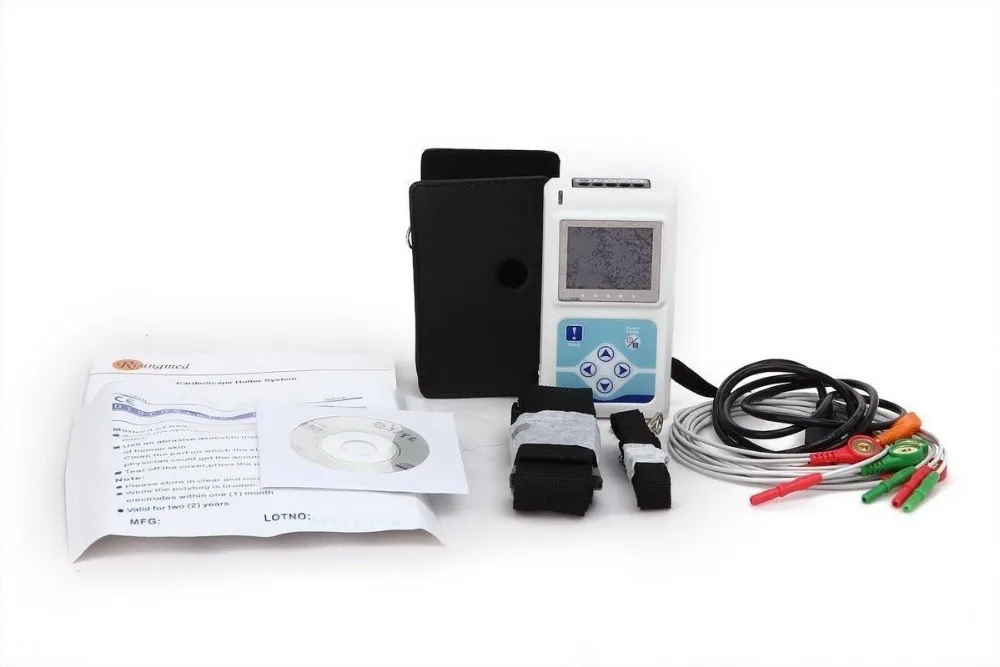

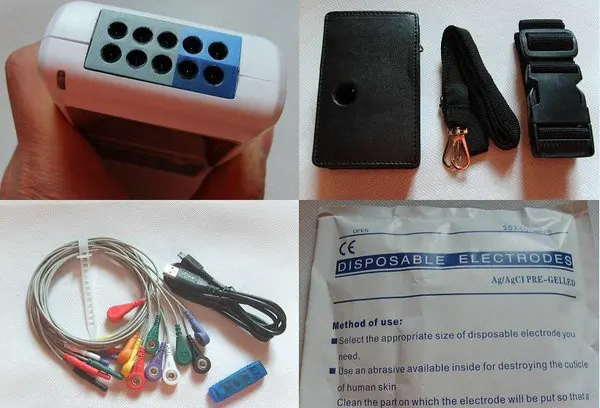

Accessories :-
One set of three lead lead wire
A bag of electrodes (20 pieces)
A USB cable
a set of  Pack
Physical Properties :
Record box size: 111 mm * 60 mm * 25 mm




Certification :



Payment Methods Accepted

PayU :Credit/Debit card | Net banking | Wallet
RazorPay: International Credit/Debit card | Net banking | EMI | Wallet
PayTm: Credit/Debit card | Net banking | Wallet
PayPal: Accept all International cards and payments.
Purchase Order / Bank Transfer : Select this option to make payment Via NEFT / IMPS / RTGS

Estimated Delivery:
Warranty :
  • 1 Years



Product Specifications

ECG Channel Print:
  • 3 Channel
